Specification
CategoryDetails
Model VersionWR1500 1.0
CPURTL8197H, 1 GHz CPU
Memory & Storage16 MB (128 Mbit) NOR Flash, 128 MB (1 Gbit) DDR2 RAM
Wireless5 GHz Wi-Fi Speed: 1201 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
FEM or PA/LNA: 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Beamforming: True
Range Performance: Max 170 m (558 ft)
Wall PerformanceTwo wooden walls (<10 cm / 4"), One concrete wall (<20 cm / 7")

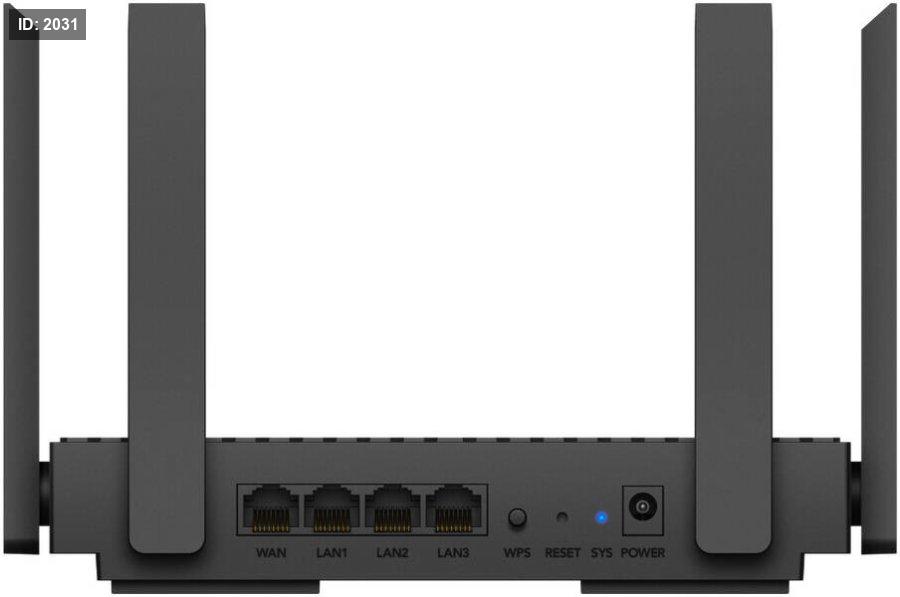

InterfacesGigabit RJ45 Ports: 4 (1× WAN, 3× LAN)
LED Indicators: System
Physical Buttons: WPS, Reset
Power Input: DC Jack
PowerPower Methods: DC
DC Input: 12V 1A
Power Adapter: 100 ~ 240V AC (Input), 12V 1A DC (Output)
Max Power Consumption: 10W
ReliabilityOperating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Humidity (Operating): 10% ~ 90% non-condensing
Humidity (Storage): 5% ~ 95% non-condensing
CertificationsFCC, CE
MechanicalInstallation: Desktop, Wall-mount
Dimensions: 183.3×109×35 mm (7.22×4.29×1.38 inches)
Product Weight: EU: 220g (7.76 oz.), ZH: 224.6g (7.92 oz.)

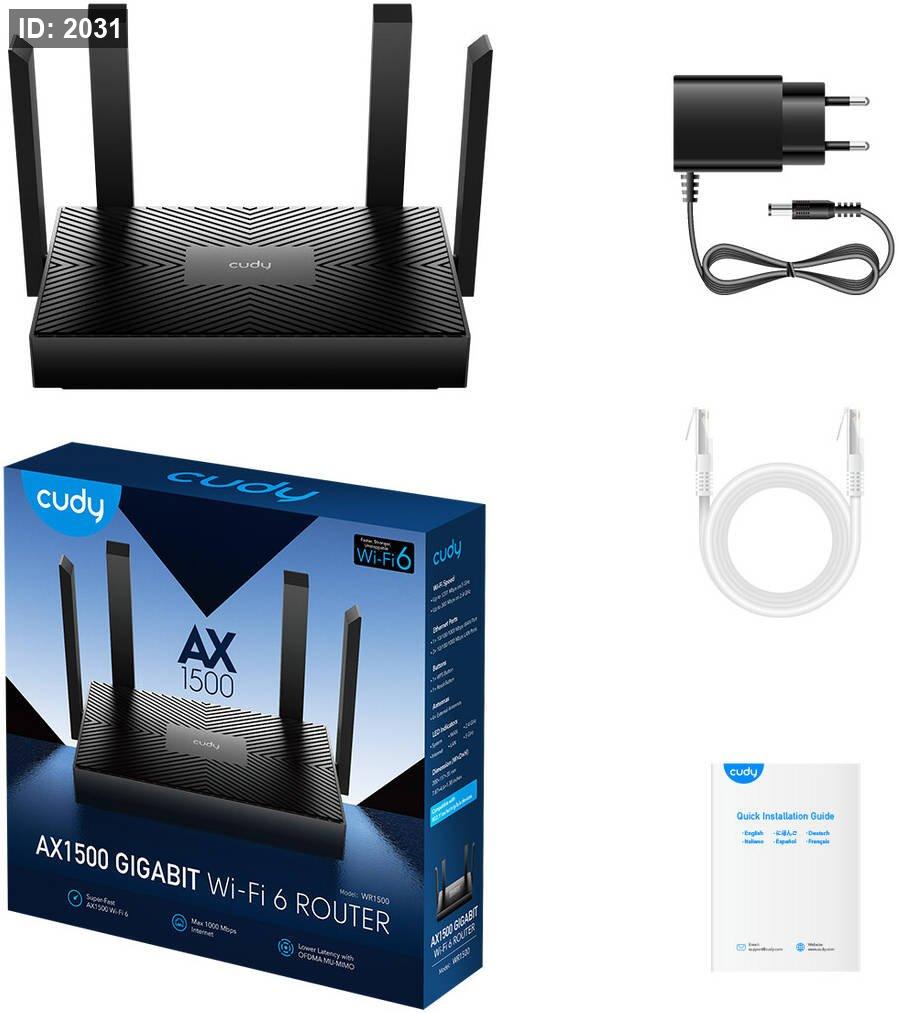

Package ContentWR1500 Router, Power Adapter, Ethernet Cable, Installation Guide
Ordering InformationRetail Package Weight: EU: 559g (19.72 oz.), BR: 549g (19.37 oz.), ZH: 519.3g (18.32 oz.)
Retail Package Dimensions: 240×230×60 mm (9.45×9.06×2.36 inches)
